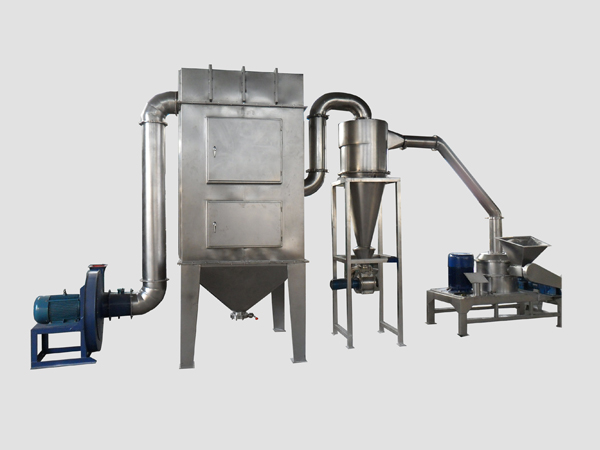

WFJ Super Fine Grinder
WFJ Super Fine Grinder
APPLICATION
The grinder consists of main machine, assistant machine, and control cabinet. The process of produce is continuous. The machine is widely used for the fragile materials in pharmaceutical, chemical, and food industries.
Technical Parameter
| Spec | Unit | WFJ-15 | WFJ-18 | WFJ-32 |
| Production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Inlet material diamenter | mm | ＜10 | ＜10 | ＜15 |
| Oulet material diamenter | mesh | 80-320 | 80-450 | 80-450 |
| Power | kw | 13.5 | 17.5 | 46 |
| Main rotaing speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Overall dimension(L×W×H) | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| Weight | kg | 850 | 980 | 1500 |
